HBS1-AGQ16DF-P momentary pushbuttons plastic 16mm Environmentally friendly material control panel switch spdt
★Navigation bar

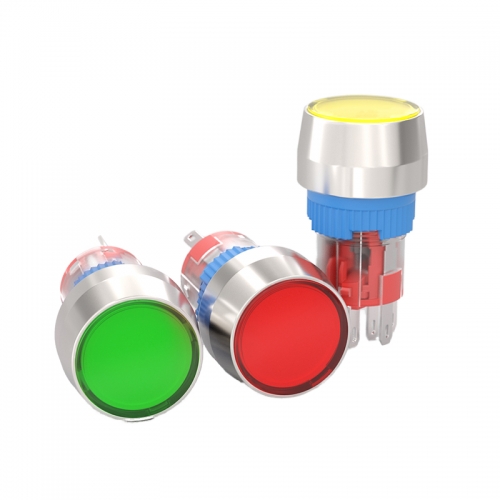

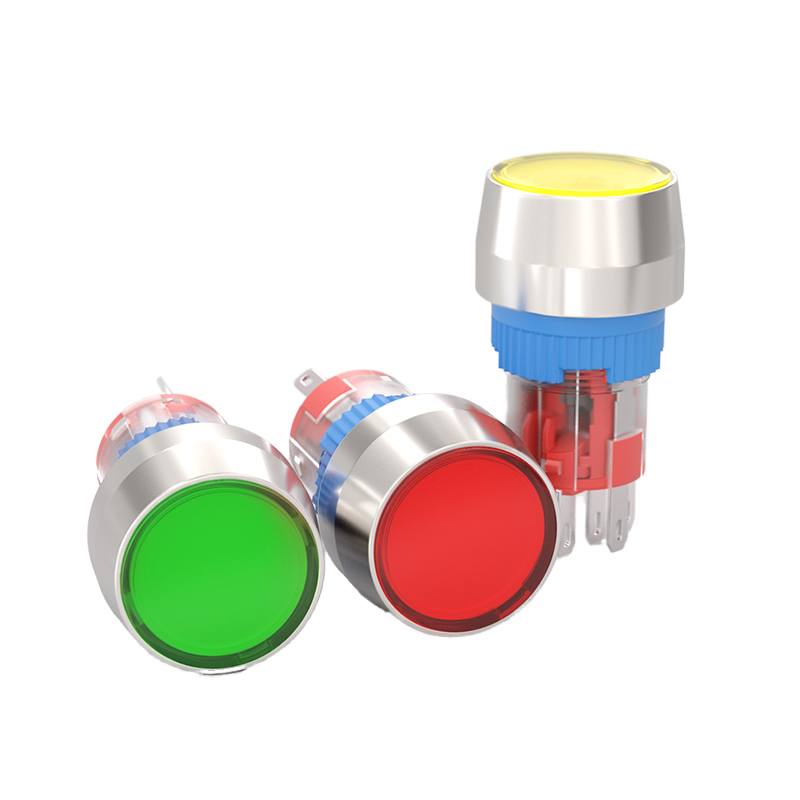

★momentary pushbuttons product Introduction
The 16mm momentary push button switch is a manually controlled device designed with a momentary on-off mechanism, featuring characteristics of "press to trigger" and "release to reset." This product is specifically designed for situations requiring quick responses and frequent operations. Its flat round head shape and multi-color options provide excellent visual recognition and user experience, making it an ideal component for achieving precise human-machine interaction in industrial control panels, electrical equipment, and automation systems.
This product utilizes a pin-terminal design, allowing for direct insertion into PCB boards or corresponding sockets, simplifying the installation process. Its plastic housing offers reliable insulation protection, while the IP40 protection rating effectively defends against the intrusion of solid objects larger than 1mm, making it suitable for most industrial environments.
Core Features
Momentary Operation and Precise Control

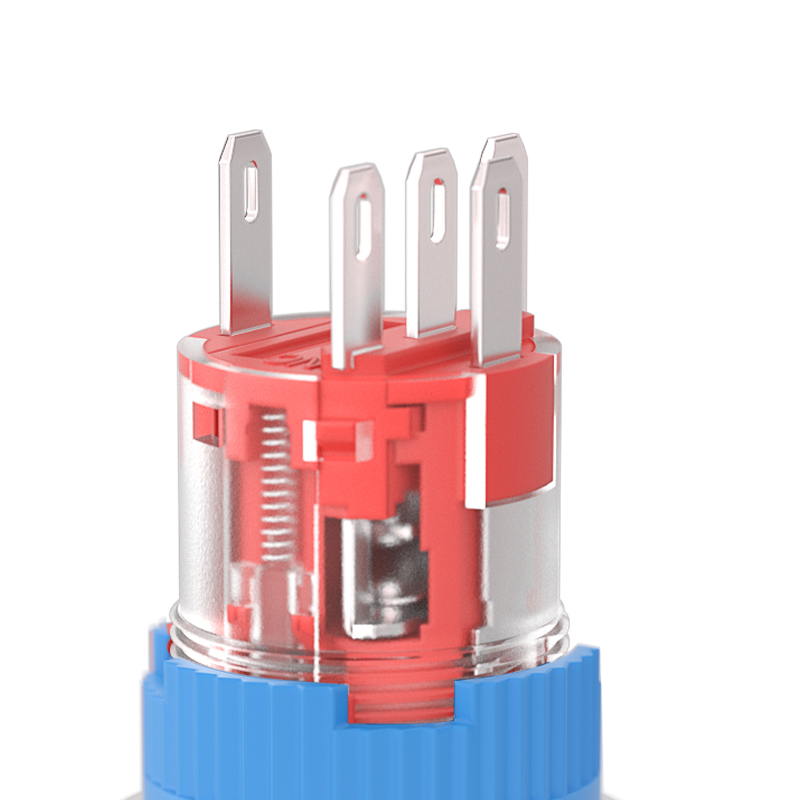

This button switch employs a momentary action mechanism, where pressing the button immediately changes the state of the contacts, and releasing it allows the internal spring to automatically reset the button. The approximately 3.2mm action stroke provides clear tactile feedback, ensuring accurate triggering with each operation. This design is particularly suited for scenarios requiring rapid triggering and avoiding misoperation, such as start/stop control and signal triggering applications.

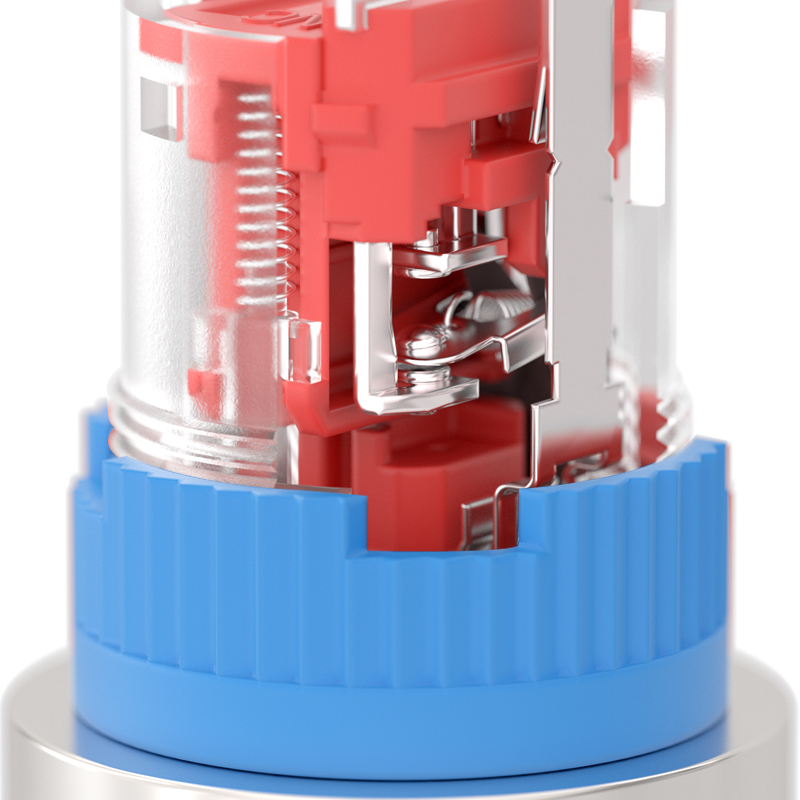

Robust Structural Design
The switch features a 1NO1NC (one normally open and one normally closed) composite contact structure, capable of simultaneously controlling two independent circuit states, providing hardware support for start/stop and interlock control logic. The contact rating is 5A/250V, meeting the needs of general control circuits. The product's structure is sturdy, made from engineering plastic, ensuring stable operation within a working temperature range of -25℃ to +65℃. Its electrical life of 50,000 cycles guarantees long-term reliability in frequently operated environments.
User-Friendly Installation and Recognition
This switch adopts a standard 16mm mounting hole design, compatible with universal control panel cutout specifications. It offers multiple button head color options including red, blue, green, yellow, and white, adhering to international color coding standards, facilitating user differentiation based on function (e.g., red is commonly used for stop/emergency functions, while green is for start functions). The pin-terminal design simplifies the installation process, allowing for direct insertion into circuit boards or corresponding sockets, reducing wiring complexity and increasing installation efficiency.
Typical Application Scenarios
- Industrial Control Equipment: Used for start/stop control of machine tools and production line equipment, with the red button optionally serving as an emergency stop feature.
- Home Appliance Panels: Integrated into appliances such as ovens and washing machines as function selection buttons, with a multi-color design for easy differentiation of modes.
- Instrument Control: Used in testing devices as trigger or reset buttons, with pin terminals suitable for batch soldering to PCBs.
- Low Voltage Distribution Systems: Serving as signal indicators or auxiliary circuit switches, with a plastic housing ensuring insulation safety.
Selection and Usage Guide
When selecting and using this button switch, consider the following factors:
- Contact Configuration Choice: The 1NO1NC configuration allows for flexible applications. Normally open (NO) contacts are suitable for starting circuits (e.g., motor operation), while normally closed (NC) contacts are better for safety interlock functions (e.g., access control detection).
- Color Semantic Reference: It is recommended to choose button colors based on international conventions: red is prioritized for emergency stop functions; green indicates start; yellow signifies warning or intervention; blue and white can be used for general functions.
- Installation and Maintenance: Ensure that the panel cutout accurately matches the 16mm size. Regularly clean surface dust and check contact conditions; if the load current approaches the upper limit of the rated value, periodic checks for contact oxidation are advised.
This 16mm momentary push button switch combines compact design, clear tactile feedback, and reliable electrical performance, making it an ideal choice for precise operations in various control applications. Its multiple color options and robust structure enable it to adapt to diverse application needs.
★momentary pushbuttons product parameters
Product type |
Technical parameters |
Product parameters |
● Mounting hole size: 16mm
|
|
Dimension drawing |
|
