10a metal switch ip65 flat head pushbutton for control box

Name: 10a metal switch ip65 flat head pushbutton for control box
Brand: China waterproof metal pushbutton,plastic button manufacturer, supplier factory-HBAN- Electric
Availability: InStock
Rating: 5 (1 reviews)

1. key word: 10A high current 22mm metal switch
2. MOQ: 20 piecce
3. Head material: metal
4. Head type: flat head, high head, mushroom head, selector switch, key switch, ring LED
5.Application areas: machinery, industrial equipment, food, aviation, new energy, medical, automation, cruise ships and other industries
6. Advantage: high current magnetic blowing arc 10a
7. Whether to support electroplating：NO;
8. Shipping methods: DHL/UPS/Fedex and other international express

INQUIRY PDF Format

Description Latest news

★Product parameters

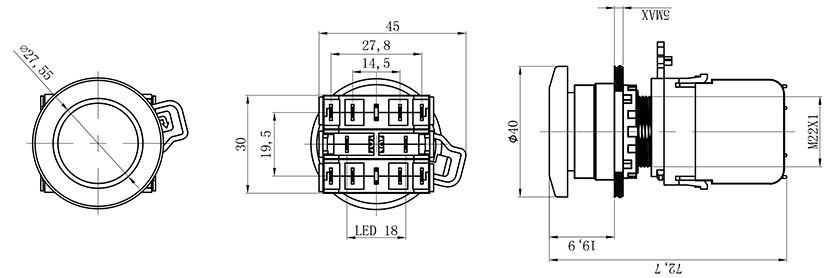

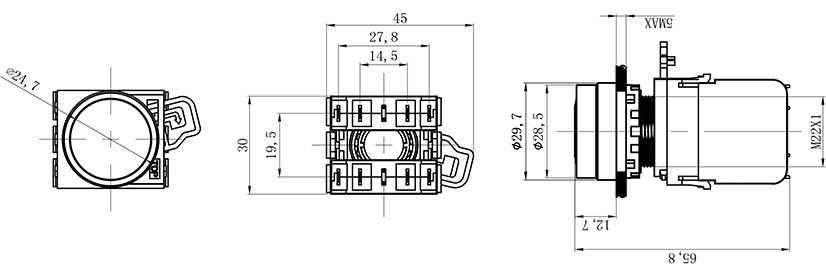

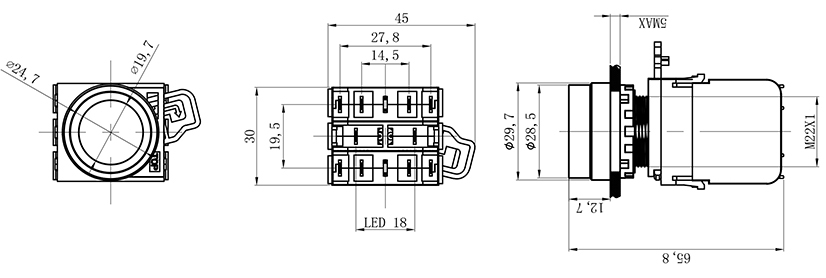

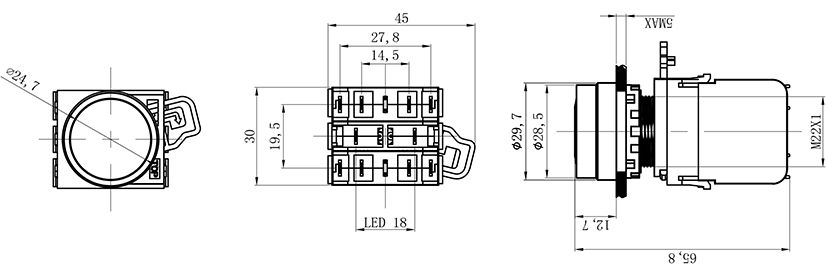

Legend	Model	Head shape hole size	Product size
	HB-K10B-11	●Mounting hole size: Ø22mm ●Head type: Flat head ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●Waterproof grade: IP65
	HB-K10B-11D	●Mounting hole size: Ø22mm ●Head type: Flat head with LED ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●LED Color: Red/Green/Yellow/ Orange/Blue/White ●Waterproof grade: IP65
	HB-K10B-11E	●Mounting hole size: Ø22mm ●Head type: Ring LED ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●LED Color: Red/Green/Yellow/ Orange/Blue/White ●Waterproof grade: IP65
	HB-K10B-11EA	●Mounting hole size: Ø22mm ●Head type: Ring LED with led ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Metal ●Switch value: 20A/660V ●LED Color: Red/Green/Yellow/ Orange/Blue/White ●Waterproof grade: IP65
	HB-K10B-11M	●Mounting hole size: Ø22mm ●Head type: Mushroom head ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●Waterproof grade: IP65
	HB-K10B-11MD	●Mounting hole size: Ø22mm ●Head type: Mushroom head with LED ●Switch combination: 1NO1NC ●Operation type: Momentary/Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●LED Color: Red/Green/Yellow/ Orange/Blue/White ●Waterproof grade: IP65
	HB-K10B-11X/21	●Mounting hole size: Ø22mm ●Head type: Selector switch ●Switch combination: 1NO1NC ●Operation type: Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●Position description: Two position (90°), Three position (45°)
	HB-K10B-11Y/21	●Mounting hole size: Ø22mm ●Head type: Key switch ●Switch combination: 1NO1NC ●Operation type: Latching ●Shell material: Chrome plated brass ●Switch value: 20A/660V ●Position description: Two position (90°), Three position (45°)

★FAQ

Q: Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.

Q: Can you provide samples ?
A: Yes,we can provide samples.we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you.

Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.

Q: What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours.

Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS.That’s a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing to ensure safety.We will be responsible to any product damage caused on delivery.
