Legend
|
Model
|
Description
|
Size
|
|

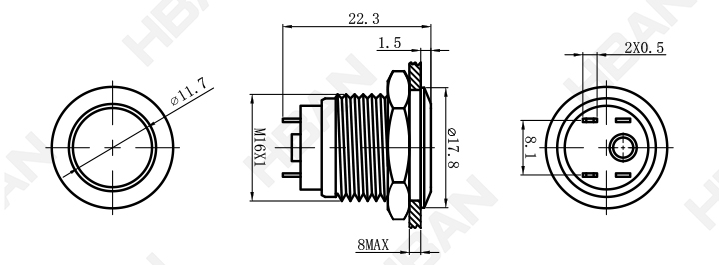

HBGQ16F-10/J/◎
|
●Mounting hole size: Ø16mm
●Head type: Flat head
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|

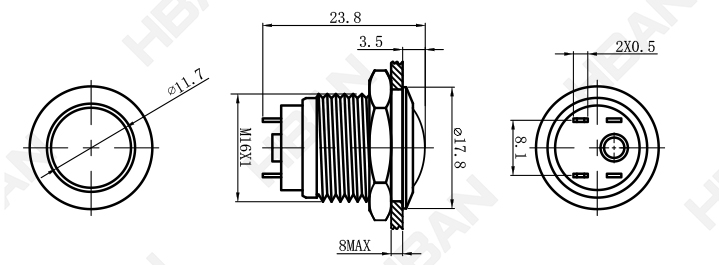

HBGQ16B-10/J/◎
|
●Mounting hole size: Ø16mm
●Head type: Domed head
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|

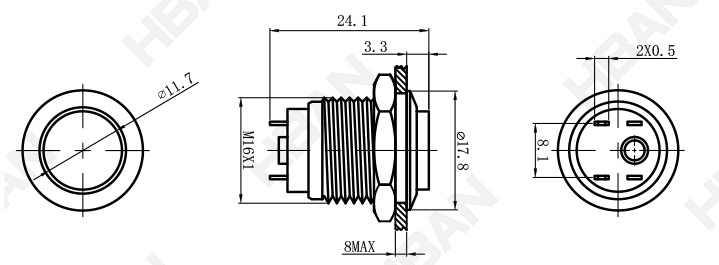

HBGQ16H-10/J/◎
|
●Mounting hole size: Ø16mm
●Head type: High head
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10D/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: Dot LED
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10E/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: Ring LED
●Switch rating:3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16H-10E/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: High head ring LED
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10ET/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: Ring and power symbol
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Momentary
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10Z/J/◎
|
●Mounting hole size: Ø16mm
●Head type: Flat head
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16B-10Z/J/◎
|
●Mounting hole size: Ø16mm
●Head type: Domed head
●Switch rating:3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16H-10Z/J/◎
|
●Mounting hole size: Ø16mm
●Head type: High head
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10DZ/J/△/▲/◎
|
●Mounting hole size: Ø16mm
●Head type: Dot LED
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16F-10EZ/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: Ring LED
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
|
HBGQ16H-10EZ/J/◎/▲/△
|
●Mounting hole size: Ø16mm
●Head type: High head ring LED
●Switch rating: 3A/250V
●Switch combination: 1NO
●Operation type: Latching
●Wiring type: Pin terminal
●LED color: Red/Green /Yellow/Orange/Blue/White
●Shell material: Nickel brass plating/Stainless steel
●Waterproof grade: IP65
|
|
